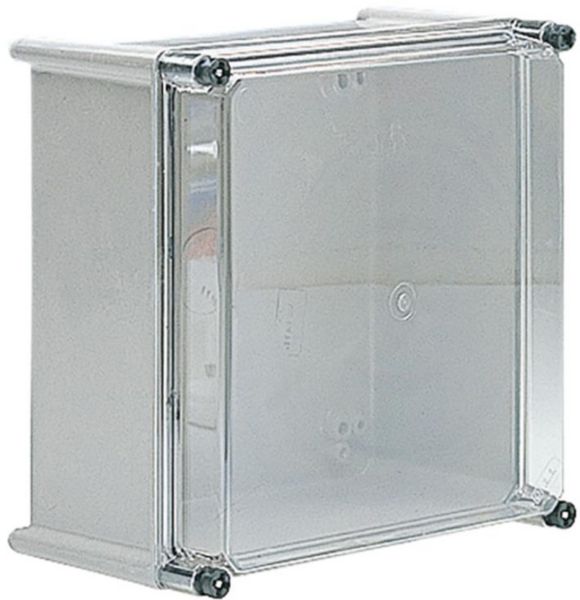

APO 81 Box with polycarbonate cover IP 66

APO Modular polyester boxes. The range consists of nine boxes based on the 300 and 185 mm modules. The bases are made of light grey (RAL7035), hot moulded glass fibre reinforced polyester, dyed in mass. These come complete with M4 threaded inserts (Dodge) for fixing a mounting plate or mounting frame. The cover is made of either transparent polycarbonate or light grey (RAL7035) hot moulded glass fibre reinforced polyester, dyed in mass. APO-boxes provide optimum security to both operators and equipment because they feature total insulation and protection degree IP67 according to EN/IEC60529. Protection degree IK08 against external mechanical impacts according to EN/IEC62208. Each large box is a multiple of a smaller one. The fixing points are blind holes for M4 threaded inserts. Four to six blind holes for M6 threaded inserts are also provided in each base. Designed for both wall and pole mounting. Box can be readily worked with tools such as drills, cutting mills, saws punches, etc.
