Mini compact distribution board, 1-row 4 SU, IP20

  1. EATON MINI-4 8612367
Piece
MaterialID
8612367
Typ
MINI-4
Discoungroup
MOR01_0025
Brand
EATON
EAN
4015081715114
Manufact.ID
177068

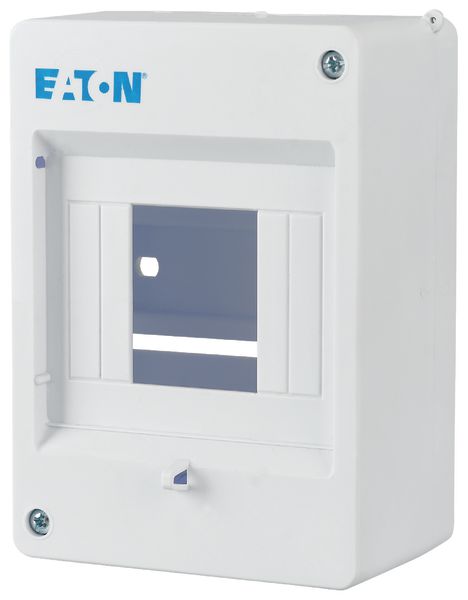

Plastic mini compact distribution board, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm and a current of up to 63 A, 400 V /50 Hz, IP20 degree of protection to IEC/EN 62208, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, for surface mounting, top with 46-mm device opening, sealable as standard, white base and cover with screw closure, knockout for metric cable entries on top, bottom, and back, protection Class II, 4 space units.
