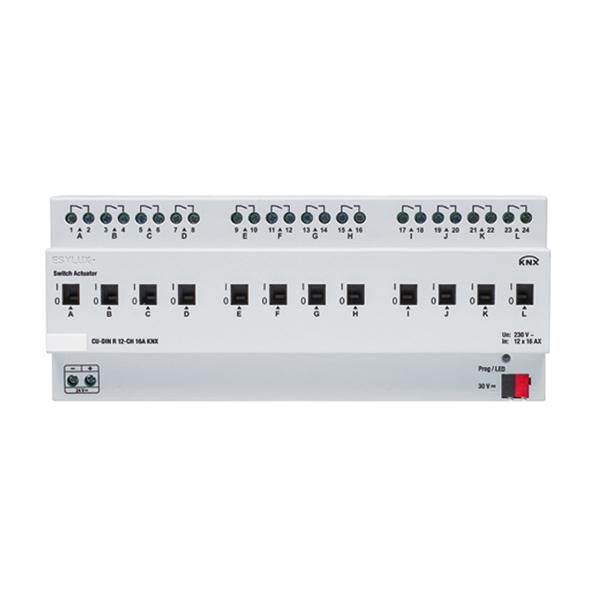

Actuator CU-DIN R 12-CH 16A KNX

  1. ESYLUX EC10430305 8676320
image unavailable
image unavailable

Price on request

Piece
Add to compare
MaterialID
8676320
Typ
EC10430305
Discoungroup
ESX01_0001
Brand
ESYLUX
EAN
4015120430305
Manufact.ID
EC10430305
KNX DIN rail module. Switch actuator. 12-way. 16-A switching capacity per channel. KNX bus with scene control. Status feedback. Time functions. On/Off status in case of power failure. Status recovery. Threshold value control. On/Off/Protection delay. Sequence control. Shading control. Stairwell light function. Heating control (PWM). Flashing. Logic functions: AND, OR, XOR, GATE.
